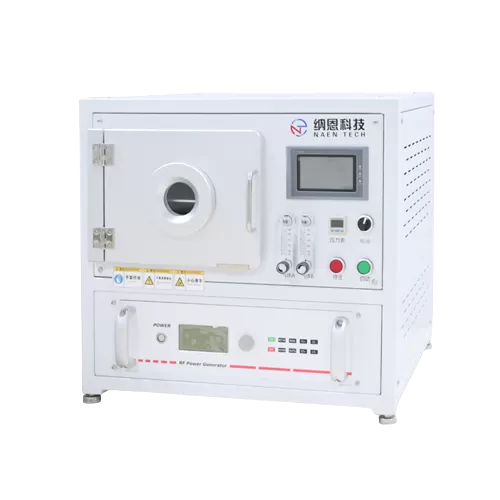

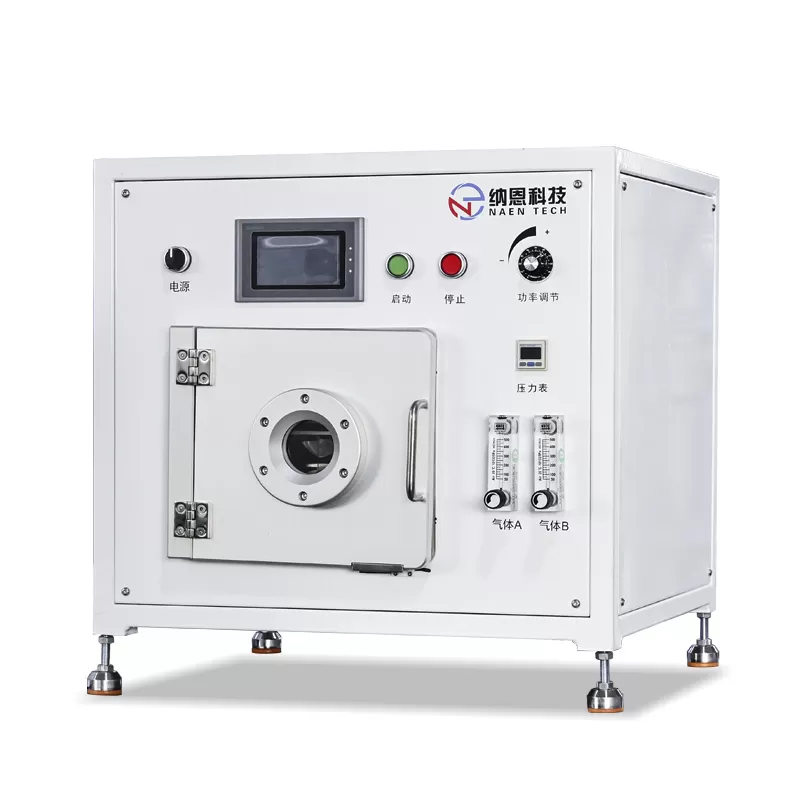

NE-PE10F Oxygen Plasma Cleaning Machine
Home / Products / Low Pressure Plasma System / Desktop Plasma Cleaner / Oxygen Plasma Cleaning Machine

DESCRIPTION

Oxygen plasma cleaning machine is a non-destructive surface treatment equipment. In addition to the general surface cleaning function, it can also change the surface properties of specific materials, such as wettability, adhesion and so on. It is mainly used for surface cleaning, modification and etching of materials. The equipment uses numerical control technology to operate automatically, and the control of gas flux, vacuum degree and reaction time is very accurate. In addition, plasma cleaning will not cause secondary pollution to the substrate surface, and its composite product is also environmentally friendly to be carried out by gas.


PARAMETER

ModelNE-PE10F
Plasma generator Power0-300W(Adjusted)
Frequency13.56MHz
Chamber material316 stainless steel, military grade seal
Cavity volume10L
Discharge electrode2 aluminum alloy special electrode + 1 tray
Chamber Cavity size230( L)×270(D)×175(H)mm
Gas channel2 channels(supports various process gase)
Touch screen4.3’’
Power Supply220V
Overall dimensions600mm(L)×600mm(W) ×550mm(H)


PRODUCT FEATURES

01

Fast Deposition Rate

Fast Deposition Rate

02

Good Film Quality

Good Film Quality

03

Process Stability

Process Stability

04

High Productivity

High Productivity

05

Fully Automatic

Fully Automatic

06

Simple Operation

Simple Operation
