DESCRIPTION

Oxygen Plasma Treatment


Oxygen Plasma Cleaner is suitable for small-scale production and scientific experiments. Oxygen plasma at low pressure (high vacuum) reacts with the molecules deposited on the surface of the piece being worked on, it breaks them up and converts them into volatile compounds.


NE-0P20F is particularly effective for eliminating organic compounds, such as grease, oil and polymers, from the surface. It is also a strong disinfectant. It can also be used for etching processes and activating OH groups on rusty surfaces, changing the hydrophilic properties.


  • Bioeconomy, Biotechnology and Food Systems

  • Industry, Materials and Circular Economy

  • Science For Engineering and Architecture

  • Social Innovation, Open Science, Governance, and Education Science

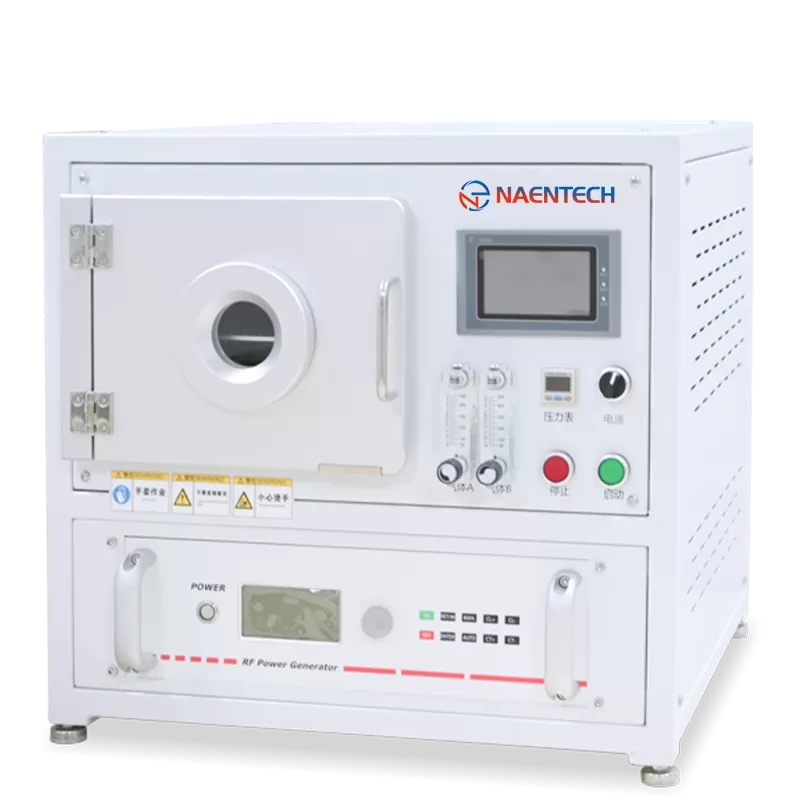

Oxygen Plasma Cleaner NE-OP20F

The NE-OP20F Oxygen Plasma Cleaner is a compact, low-pressure plasma system designed for ultra-fine surface treatment, organic contaminant removal, and surface activation using high-purity oxygen. It offers a clean, dry alternative to traditional chemical cleaning methods, suitable for semiconductor, optics, and biomedical applications.

Applications

  • Semiconductor wafer cleaning and photoresist removal

  • Surface activation for polymer bonding

  • Glass and optical lens cleaning without scratching

  • Biomedical device preparation and sterilization

Advantages

  • Low-temperature and solvent-free processing

  • Uniform plasma distribution for consistent results

  • Programmable control for repeatable performance

  • Ideal for sensitive materials and fine structures

Working Process

  1. Sample is loaded into the vacuum chamber

  2. Chamber is evacuated to ≤100 Pa

  3. Oxygen gas is introduced and ignited with 13.56 MHz RF power

  4. Plasma reacts with surface organics, converting them into CO₂ and H₂O

  5. System vents, and the cleaned sample is removed

Technical Specifications

  • Chamber size: 200 × 200 × 120 mm

  • RF Power: 0–200 W

  • Vacuum level: ≤100 Pa

  • Supported gases: O₂, Ar, N₂

  • Control interface: Touchscreen programmable

PARAMETER

EnclosureDimensions650mm(L)×575mm(W) ×635 mm(H)
Weight80KG (Including vacuum pump)
Plasma GeneratorPower0–300W, continuously variable output
Frequeny13.56 MHz
ChamberMaterialStainless Steel
FormCylindrical
Volume22.8L
Dimensions380(L)*375(D)*160(H)mm
Process ControlInterface4.3” with recipe store+PLC
Gas Channel OptionsFloat Flowmeter/x2 MFC (customizable)
ServicesElectricalAC220, 50–60Hz
Power CordSuited to region


PRODUCT FEATURES

01

Fast Deposition Rate

Fast Deposition Rate

02

Good Film Quality

Good Film Quality

03

Process Stability

Process Stability

04

High Productivity

High Productivity

05

Fully Automatic

Fully Automatic

06

Simple Operation

Simple Operation
