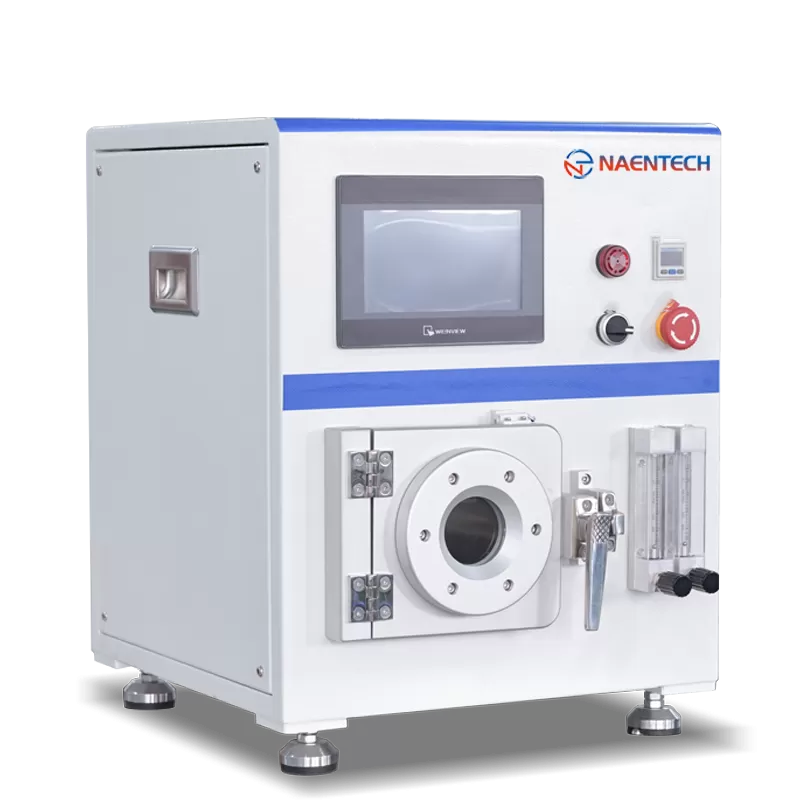

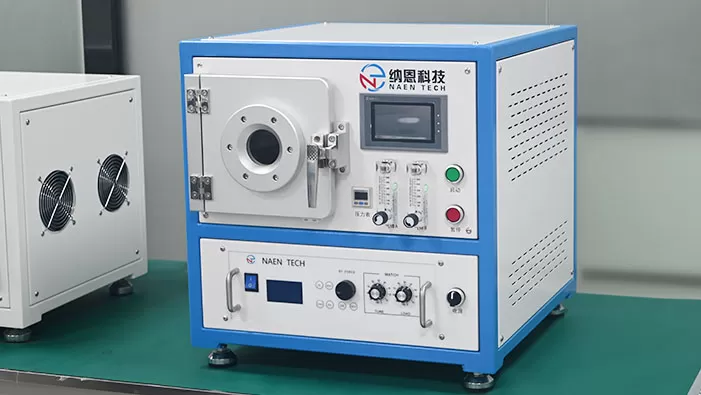

The NE-PE02 is a PLC controlled benchtop plasma treatment system which is dedicated to cleaning and surface activation of a wide range of materials including polymers, metals, glass and ceramics, delivering optimum adhesion properties of otherwise difficult to bond materials.The use of plasma treatment technology can improve the hydrophilicity, wettability, adhesion, printing and dyeing properties of materials.

Process Result

The NE-PE02 system is supplied with a 7-inch touchscreen which provides a rich, user-friendly interface. Variables such as gas flow rate, pressure, power level and plasma processing time can be freely set and then stored to produce a fully interlocked process cycle from a single keypress. A handy status display and end of process audible alarm informs the user of every step in the process.

Plasma Environment

The NE-PE02 system features a 100mm diameter plasma process chamber in stainless steel with vacuum compatible materials throughout. NAEN's proprietary, high stability HPS plasma generator is continuously variable over the entire 0-300W power range rather than being limited to discreet levels, delivering much finer control when processing delicate materials.

Surface Treatment for Various Industries

Vacuum plasma technology is currently a cutting-edge surface treatment method that is fundamentally changing industries such as semiconductors, electronics, and automobiles. This cutting-edge technology provides an efficient and reliable solution for enhancing the adhesion and wetting properties of various materials such as polypropylene and polyethylene. The vacuum plasma processing system emphasizes usability, speed, and flexibility, bringing enormous value to enterprises seeking to optimize manufacturing processes.

Benefits

With precision flow control and integrated pressure gauge, the model NAE-PE02 provides the users the ability to adjust various parameters, such as time, pressure, and power, to achieve the desired results. As the technology doesn’t require any special treating gases, it can function with clean, dry air or a combination of oxygen and argon for specific chemical changes.
