Entry-Level Plasma Treatment Solution for Basic Lab Applications

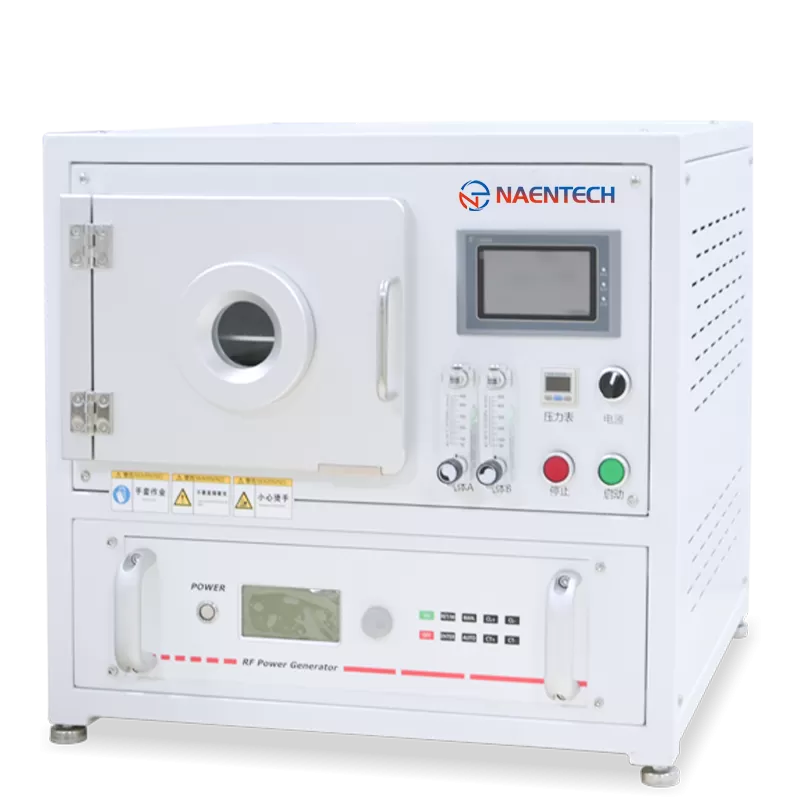

NE-PE05  Benchtop Plasma Cleaner is an entry-level desktop plasma equipment. It is a  small one - mobile, functional and cost-effective - suitable for your laboratory. The 5 litre BENCHTOP PLASMA CLEANER  NE-PE05 is an economical equipment designed for basic surface cleaning and activation. with manual and basic PLC control which primarily intended for the following applications: Small batch production, Analytics (SEM, TEM), Medical engineering, Sterilising, Research and development departments, Archaeology, Textile technology, Plastics technology.

NE-PE05 is capable of processing a wide range of materials including polymers, metals, glass and ceramics for optimal treatment results, including air, oxygen, nitrogen, etc, which offers very fast treatment times and optimum adhesion properties for downstream coating, gluing, painting, and printing applications.

The NE-PE05 adopts CCP capacitive coupled plasma generation method. The processing chamber is made of cylindrical stainless steel. It can be used to improve the adhesion of substrate surface or improve the surface hydrophilicity which uses the advanced power generator as a power supply and specially designed plasma transformer to provide voltage to the plasma electrodes.

• Plasma cleaning organics

• Plasma surface activation to improve adhesion

• PDMS & microfluidic devices

• PEEK & other engineering polymers

• PTFE

• Metals

• Ceramics

• Glass & optical devices

Typical Plasma Cleaning Workflow

Load sample into the vacuum chamber (up to 150×150 mm tray size)

Close chamber & initiate vacuum to create low-pressure environment

Introduce process gas (air, O₂, Ar, or custom blend)

Ignite plasma via 13.56 MHz RF power supply

Surface reaction occurs—removing contaminants or modifying surface chemistry

Vent chamber and retrieve treated sample

Why Choose the PE-05 Benchtop Plasma Cleaner?

✅ Plug-and-play design: Easy to install in any lab or cleanroom environment

✅ Wide gas compatibility: For flexible surface treatment recipes

✅ Low operating cost: No chemicals, low gas consumption, minimal maintenance

✅ Digital control panel: Intuitive UI for recipe programming and repeatability

✅ Reliable vacuum system: Ensures uniform plasma density and consistent cleaning

✅ Used in over 200 research labs worldwide across electronics, biology, and materials science

What Problems Does Plasma Cleaning Solve?

Eliminates organic contaminants (e.g., oils, photoresist residue, flux) that hinder adhesion or coatings

Enables stronger adhesion in bonding, painting, printing, and coating operations

Replaces wet chemical cleaning, minimizing environmental risk and process variability

Supports pre-treatment for bonding, packaging, and sterilization in sensitive industries

Whether you’re developing micro-scale components, preparing surfaces for bio-functionalization, or improving adhesion performance, the PE-05 Benchtop Plasma Cleaner offers a reliable, clean, and precise solution tailored for your workflow.
