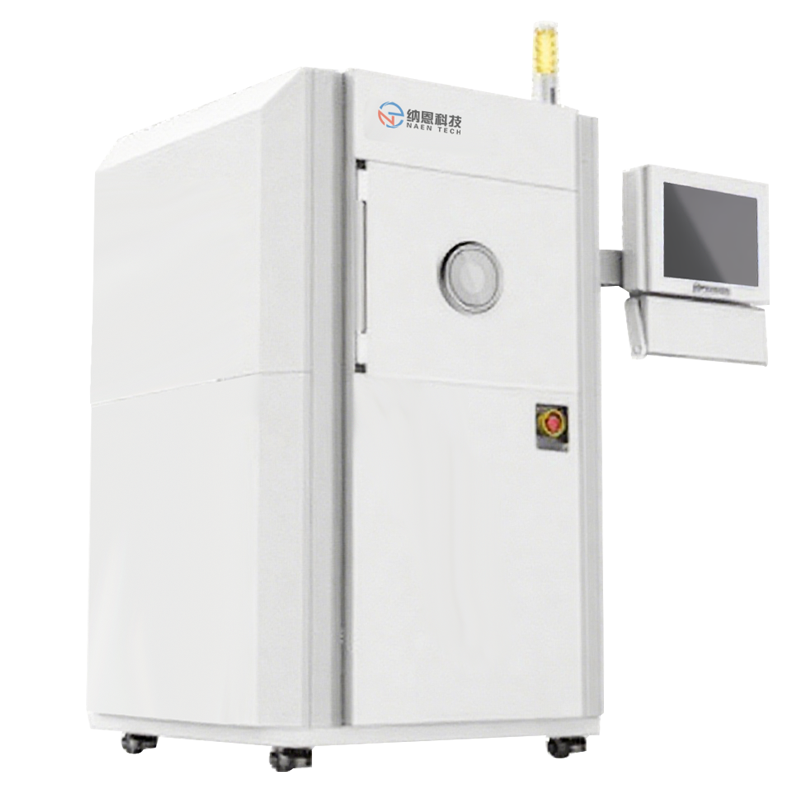

NE-MW100 Microwave plasma cleaning machine
Home / Products / Low Pressure Plasma systems / Microwave Plasma Systems / Microwave plasma cleaning machine

DESCRIPTION

Microwave plasma cleaning machine is a kind of advanced equipment that uses microwave energy to produce plasma to clean the surface of objects. It can remove organic matter, photoresist, inorganic matter, oxide layer and other pollutants. It can clean the surface of silicon wafer, gold PAD, aluminum PAD and so on. The cleaning machine has the advantages of convenient operation, high efficiency, clean surface, no scratch, and is conducive to ensuring product quality. There is no air pollution in the cleaning process, and no waste liquid and waste residue are produced. It is a real energy saving and cost reduction.

PARAMETER

EnclosureDimensions1200(W)×1200(D) ×1800(H) mm


Plasma Generator

Discharge generatorSolid-state power supply
Frequency2.45GHz
Power1000W(adjustable)




Chamber

MaterialAL6061, military-grade seal
Carrier stage sizeΦ270mm
Volume100L
Dimensions480(W)*505(D)*410(H)mm
Handling abilityMaximum of 6 wafers ( 8 / 10 inch silicon wafers )





Process Control

Gas flow controllerMFC / gas path
Flow Value500SCCM
Number of gas paths2 process gas path, can support oxygen, argon, nitrogen, hydrogen, argon hydrogen mixed gas, etc.
Pressure gauge
Pirani
Vacuum pumpDry pump, 80m³/h
Interface12” with recipe store+PLC+industrial computer


Services

ElectricalAC380V, 50/60Hz
Power CordSuited to region
