What is a Plasma Surface Treatment?

Plasma surface treatment is a controlled, low-temperature surface modification process that uses ionized gas — plasma — to clean, activate, etch, and coat the surface of a material at the molecular level. By exposing a substrate to plasma, manufacturers can fundamentally change the surface chemistry and energy of the material without altering its bulk properties, enabling superior adhesion, wettability, printability, and bonding performance across a wide range of industrial and research applications.

Unlike wet chemical processes, solvent cleaning, or primer application, plasma surface treatment requires no liquid chemicals, generates no hazardous waste, and leaves no residue. It is one of the most precise, repeatable, and environmentally responsible surface preparation technologies available in modern manufacturing — and it works effectively on materials that resist conventional surface treatment methods, including PTFE, silicone, and other low-surface-energy polymers.

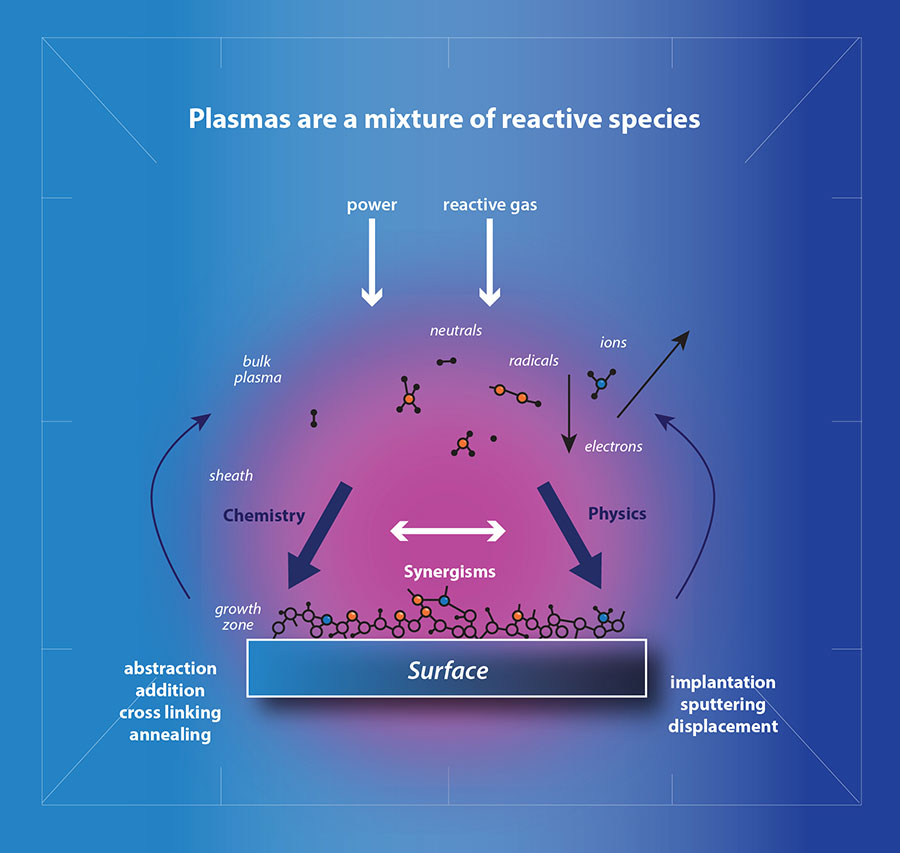

A plasma contains positive ions, electrons, neutral gas atoms or molecules, UV light and also excited gas atoms and molecules, which can carry a large amount of internal energy (plasmas glow because light is emitted as these excited neutral particles relax to a lower energy state). All of these components can interact with the surface during plasma treatment. By choosing the gas mixture, power, pressure etc. we can quite precisely tune, or specify, the effects of the plasma treatment.

Plasma surface treatment systems are widely used to facilitate bonding of adhesives, paints, inks, coatings, epoxies, resins, potting compounds, and other materials. Plasma surface treatments use plasma to alter the surface of a material in order to improve surface energy for bonding and printing. Plasma treatments also increase wettability of most any substrate.

Plasma treatment equipment becomes indispensable tool for processing various plastics including PTFE, ETFE, PVC, PP, PE, PET, and other low surface energy solids. All surfaces are contaminated with organics even though the contaminates are usually invisible to the casual observer. These contaminants impact an object’s ability to interact with other materials such as glue or ink. By treating an object's surface with a plasma, we are able to remove organic contaminants.

What Does Plasma Surface Treatment Do?

Surface Cleaning – Removes organic contaminants and weak boundary layers for a pristine bonding or coating interface.

Surface Activation – Introduces polar functional groups (e.g., –OH, –COOH) to increase surface energy and wettability, making low‑energy substrates (PP, PE, PTFE, etc.) easier to bond or print.

Surface Etching – Micro‑roughens the surface at the nanoscale to increase mechanical interlocking and adhesive strength.

Surface Coating / Grafting – Deposits thin functional layers or grafts specific chemistries via plasma polymerization or grafting.

Low‑temperature, Dry Process – Minimizes thermal and environmental impact compared with flame, corona, or wet‑chemical alternatives.

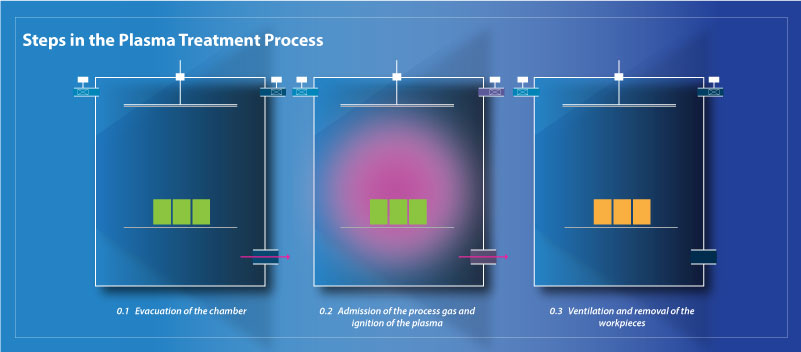

How the plasma treatment process works

A typical plasma surface treatment process consists of three main stages:

Gas Selection & System Setup – Choose process gases (e.g., O₂, Ar, N₂, air, CF₄, H₂) and set pressure, power, and treatment time according to substrate type and target effect.

Plasma Ignition & Stabilization – Under low‑pressure (vacuum) or atmospheric conditions, the gas is ionized by an electrical discharge, generating reactive species including ions, electrons, radicals, and UV photons that interact with the surface.

Surface Modification – The reactive species clean contaminants, break bonds, introduce functional groups, or micro‑etch the top layer within seconds to a few minutes, altering contact angle and surface energy without affecting bulk properties.

Process Parameters – Key parameters include gas mixture, pressure (low vs atmospheric), power, exposure time, and substrate temperature. These determine whether the process is optimized for cleaning, activation, etching, or coating. For detailed technical机理，see our “The principle of plasma treatment process” article.

Industries:

• Aerospace & Automotive – Surface cleaning and activation for structural bonding, painting, and sealing of composites and lightweight alloys.

• Electronics & Optics – Plasma cleaning of PCBs, chips, lenses, and ITO glass prior to coating or wire bonding.

• Medical & Biomedical – Device cleaning, hydrophilization, and functionalization for implants, labware, and diagnostic components.

• Packaging & Printing – Improve ink adhesion and lamination on films, foils, and cards.

• Photovoltaics & LED – Surface preparation for solar cells, LED packaging, and OLED displays.

• Textiles & Filtration – Hydrophilic and anti‑static treatment for technical textiles and filter media.

• R&D & Academic – Desktop and versatile low‑pressure systems for process development and experiments.




What Materials Can Be Treated?

Metals – Improve adhesive bonding, painting, and coating on stainless steel, aluminum, copper, titanium, and alloys by removing oxides and organics, and by enhancing surface energy.

Plastics & Elastomers – Activate low‑surface‑energy polymers (PP, PE, PET, PS, PTFE, silicone, rubber, etc.) for printing, bonding, and laminating.

Glass & Ceramics – Clean and activate glass, ITO, and ceramic surfaces before coating or bonding; widely used in optics and displays.

Composites & Films – Treat carbon fiber, glass fiber composites, and flexible films for improved adhesion in automotive, packaging, and photovoltaic applications.

Powders & Granulates – Modify powders for batteries, additives, and advanced materials with dedicated powder plasma systems.

Plasma Treatment vs Corona Treatment vs Flame Treatment

Plasma Treatment – Precise control via gas type, pressure, and power; suitable for complex geometries and sensitive substrates; minimal heat input and no direct contact with flame; compatible with a wide range of materials and inline integration.

Corona Treatment – Often used for films and webs; typically air‑based and less tunable than plasma; may not be ideal for 3D parts or very demanding adhesion requirements.

Flame Treatment – Fast but less controllable; high heat input can affect thin or heat‑sensitive substrates; generally limited to relatively simple surfaces.

Naen Technology systems increase the bond strength of a glue or solder and provides increased reliability for printing. These treatments work well on shiny plastics and rubbers, allowing printing and bonding.

We work closely with our customers finding a right plasma solution. Give us a call to discuss what’s best for your application.
