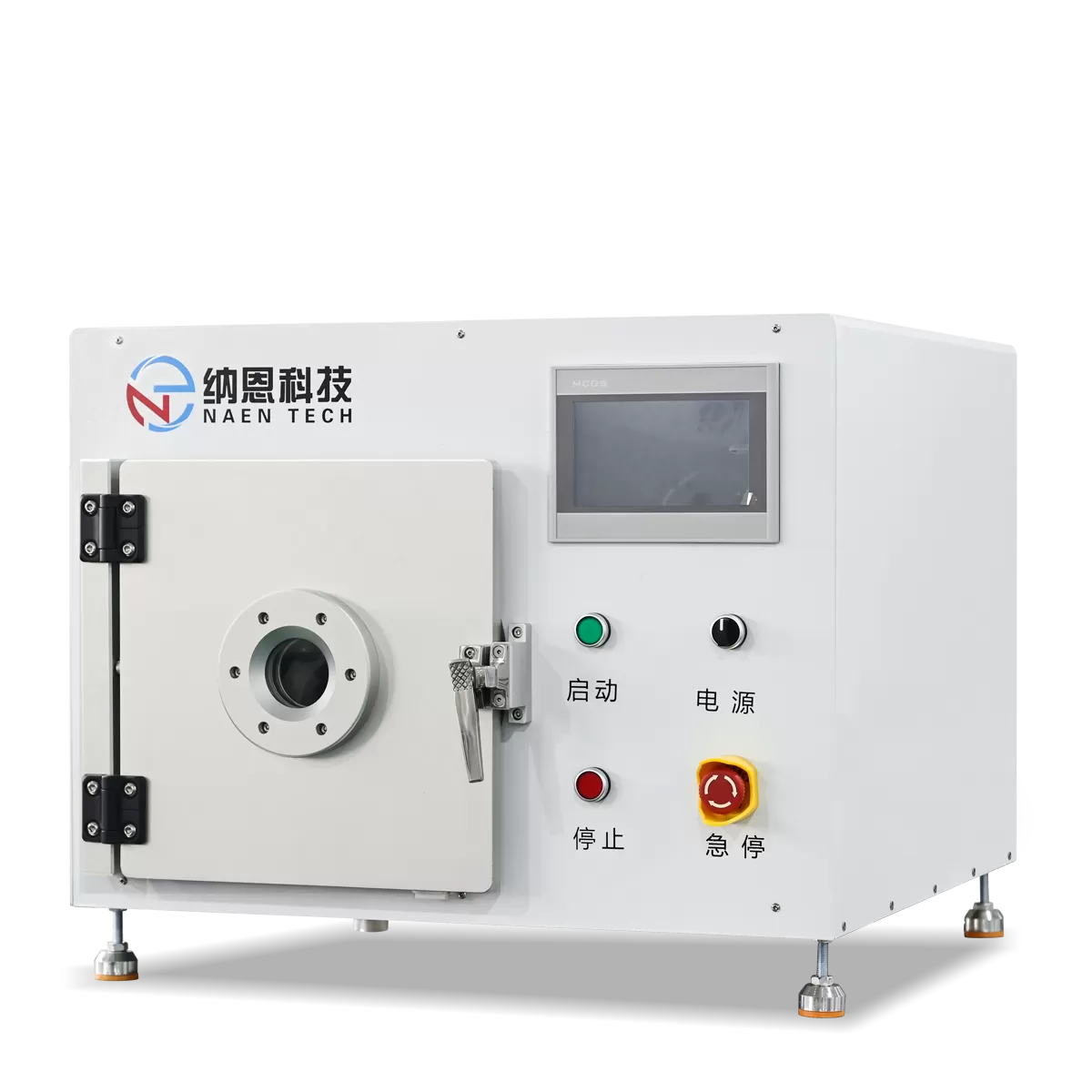

NE-PE13X Laboratory Plasma Powder System
Home / Products / Low Pressure Plasma systems / Rotary Drum Plasma Systems / Laboratory Plasma Powder System

DESCRIPTION

Laboratory Plasma Powder System is appreciated for its simplicity of operation, reliability in production and fast process speed which uses the advanced power generator and specially designed plasma transformers to provide voltage to the plasma electrodes.


Laboratory Plasma Powder System is used for in-line treatment of injection molded parts prior to coating, printing, gluing, painting, etc. Often the NE-PE13X is also used simply for optimizing adhesion properties of a given substrate.


The NE-PE13X ensures a very uniform treatment process and offers the user full process control of all parameters. The NE-PE13X offers a cost-effective method for optimizing the adhesion properties of printing inks, coatings, glue, and paint on any surface made of polymer material including the commonly used polypropylene and polyethylene. The NE-PE13X can thus be used for treating plastic materials and plastic products.


The NE-PE13X offers significant advantages:


  1. No External Additives Required: Eliminates the use of organic solvents or surfactants, avoiding contamination or secondary waste.

  2. Ambient Temperature Processing: Operates at near-room temperature, preserving heat-sensitive material properties (e.g., polymer crystallinity).

  3. Rapid Reaction: Typical treatment times range from 1–30 minutes, far shorter than hours-long thermal processes.

  4. Surface-Specific Modification: Optimizes the physicochemical structure of the powder surface (e.g., introducing functional groups, nano-roughness) while maintaining the bulk properties (e.g., particle size distribution, mechanical strength).

PARAMETER

EnclosureDimensionsL705×W710×H545mm
Weight150KG (Including vacuum pump)
Plasma Generator
Frequency40KHz
Power0–300W, continuously variable output
Chamber
MaterialStainless Steel
FormCylindrical
Volume1.7L
Dimensions

Φ250×300(D)mm

Process ControlVacuum GaugePirani
Interface7” with recipe store+PLC
Flow Value

0-500 SCCM

Gas Flow Controller

MFC

ServicesElectricalAC220, 50–60Hz
Power CordSuited to region


PRODUCT FEATURES

01

Fast Deposition Rate

Fast Deposition Rate

02

Good Film Quality

Good Film Quality

03

Process Stability

Process Stability

04

High Productivity

High Productivity

05

Fully Automatic

Fully Automatic

06

Simple Operation

Simple Operation
